UDome™ insulated fibreglass structures are assembled in a day and tend to be more fire, wind and wear resistant than less permanent designs. Their commercially viable life span is up to 50 years with proper maintenance and care - limited warranty is three years.
In Detail…
UDomes™ are available with no insulation as storage solution, with standard R19 insulation for seasonal use, or with R33 insulation for four season use;

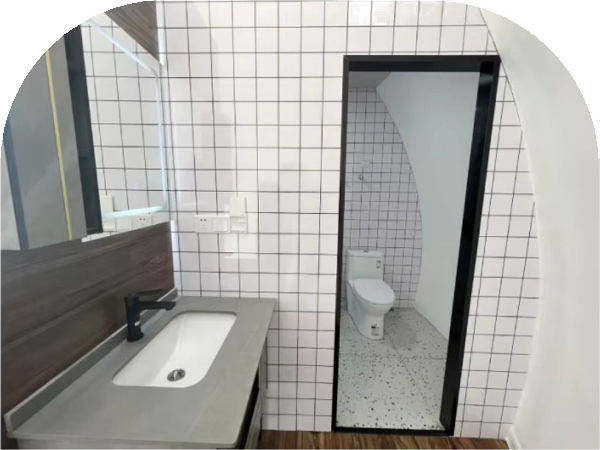

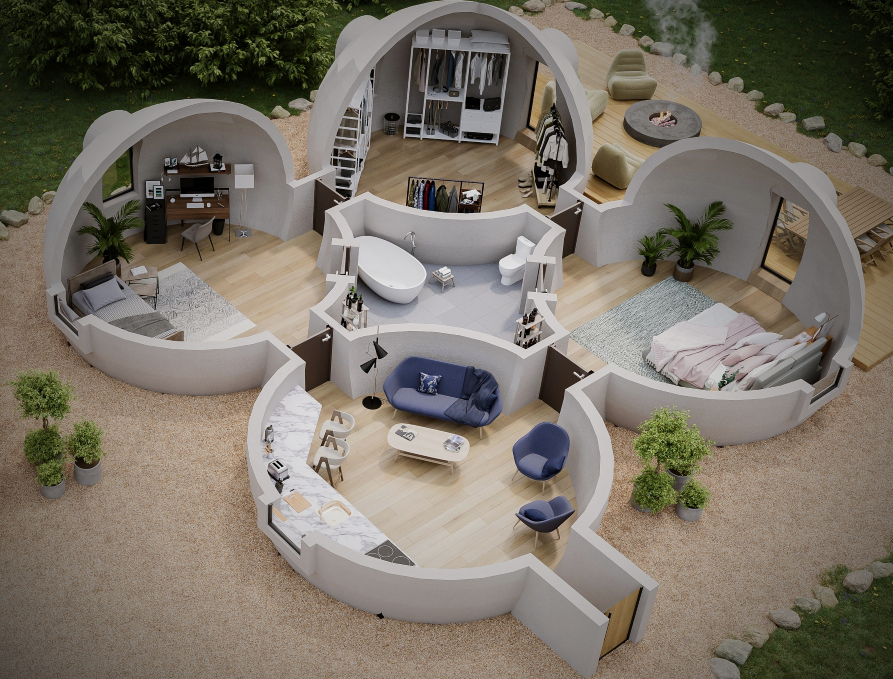

They may be attached to create two, three, four or more-unit structures, 323 sq.ft. per unit, centre space not covered (see bath, bottom right);
Lease-to-own may be available, OAC: a typical transaction includes 20% down, the balance over 36, 48, 60, 72, 84 or 96 months;
Each UDome™ is assembled by three or four friends or family with average technical proficiency in six to eight hours;
Components are easily handled and transported even to remote locations by 4wheeler and trailer one at a time;
Given UDome™ can be disassembled and moved, they may not require building permits in some jurisdictions, or for some purposes - please check with your local permitting authority;
In addition to standard white, units optionally come in many custom colours (and even patterns, like camouflage);
Windows are available flush (as seen in the header), or in different sizes with different functionality: panoramic, sliding, swinging, tilting, etc.;
The recommended platform size is 24' x 24', concrete slab or wooden deck;
UDomes™ commercially viable life expectancy is 50 years with regular maintenance; the standard warranty is three years.
- Interior finishing not included.
Specs…
- Size: 20 ft. (6.1m) Diameter, 12 ft. (3.5m) Height, up to 2.36 inch (60mm) wall thickness (insulation R19 or R33 ceilings); - Total Floor Area: 323 sq.ft. (30 m2) per unit; units may be doubled, tripled, or quadrupled by attaching them together; - Standard Configuration: one door, one sliding window; white in colour; - Optional Configuration: (up to) four doors, (up to) three windows; custom colours and patterns, including camouflage; - Material: FRP panels combined with PU; sandwich structure insulation; wiring tubes installed; - Stock orders: four units per container; please note: quantities not divisible by four necessitate a special order surcharge..
